Standard ISO Pallet Wide Container
The 20’ Pallet Wide Container (ISO 2CG1) is a general purpose shipping container specifically designed to maximize pallet loading efficiency. Manufactured in accordance with ISO and CSC requirements, it provides increased internal width compared with a standard 20-foot container, allowing two Euro pallets to be loaded side by side without wasted space. The ISO code 2CG1 identifies a 20-foot Pallet Wide General Purpose Container.
The wider internal dimensions make the container particularly suitable for palletised cargo, retail distribution, manufacturing logistics and warehouse operations while remaining fully compatible with international intermodal transport by sea, rail and road.

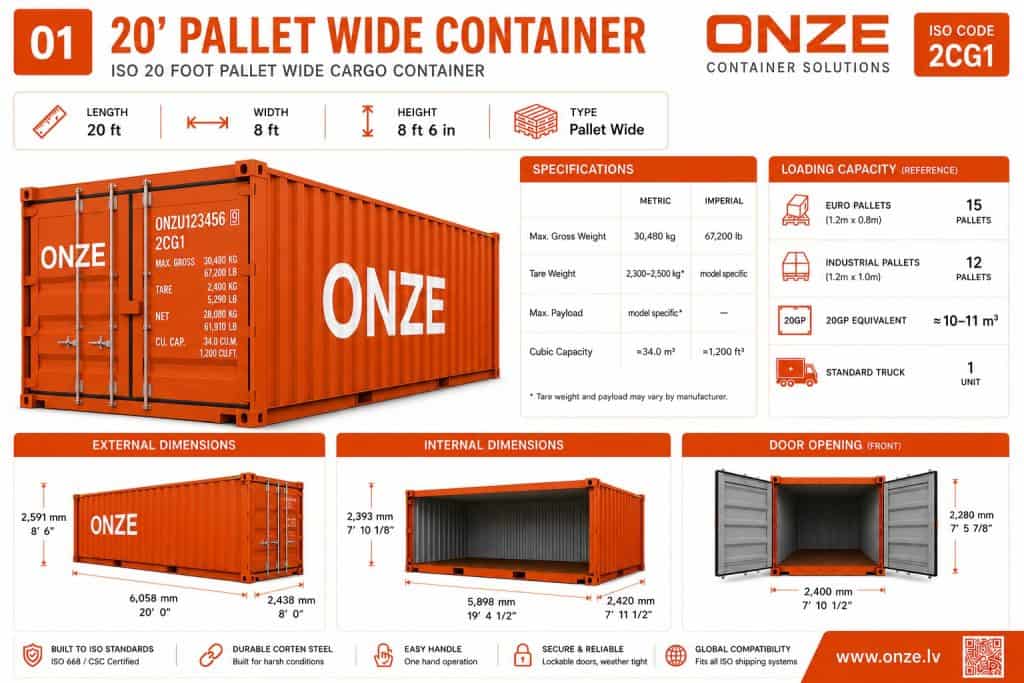

Technical Specifications
| pecification | Value |
|---|---|
| ISO Code | 2CG1 |
| External Length | 6,058 mm |
| External Width | 2,500 mm |
| External Height | 2,591 mm |
| Internal Length | 5,895 mm |
| Internal Width | 2,440 mm |
| Internal Height | 2,393 mm |
| Door Opening Width | 2,440 mm |
| Door Opening Height | 2,280 mm |
| Maximum Gross Weight | 30,480 kg |
| Tare Weight | 2,450 kg |
| Maximum Payload | 28,030 kg |
| Cubic Capacity | 34.4 m³ |
External Dimensions
The external dimensions are optimized for European pallet transport while remaining compatible with international logistics equipment.
- Length: 6,058 mm
- Width: 2,500 mm
- Height: 2,591 mm
The wider construction provides greater loading efficiency without compromising handling operations.
Internal Dimensions
The wider cargo compartment has been designed to maximize usable pallet space.
- Length: 5,895 mm
- Width: 2,440 mm
- Height: 2,393 mm
With a capacity of 34.4 m³, the container accommodates more palletised cargo than a standard 20-foot container.
Door Opening
Full-width cargo doors provide excellent access for forklifts and warehouse equipment.
Door opening dimensions:
- Width: 2,440 mm
- Height: 2,280 mm
The increased door width simplifies loading of Euro pallets placed side by side.
Payload & Weight Ratings
The reinforced construction provides high payload capacity while maintaining excellent structural strength.
- Maximum Gross Weight: 30,480 kg
- Tare Weight: 2,450 kg
- Maximum Payload: 28,030 kg
Actual payload depends on the manufacturer and container configuration.
Loading Capacity
Typical loading configuration includes:
- 15 Euro pallets (1200 × 800 mm)
- 12 Industrial pallets (1200 × 1000 mm)
- 34.4 cubic metres of cargo volume
Actual loading capacity depends on cargo dimensions, packaging and weight distribution.
Pallet Wide Design
The 2CG1 Pallet Wide Container features:
- Increased internal width
- Wider door opening
- Standard rear cargo doors
- Reinforced steel frame
- Marine plywood floor
- Multiple cargo lashing points
- ISO corner castings
The wider interior allows two Euro pallets to fit side by side, reducing unused space and improving transport efficiency.
Construction
The structure is manufactured from high-strength Corten steel, providing excellent durability under demanding operating conditions.
Standard construction features include:
- Reinforced steel frame
- Marine plywood floor
- Weather-resistant door seals
- CSC certification
- ISO corner castings
- Forklift handling compatibility
Applications
The 20’ Pallet Wide Container is commonly used for:
- Euro pallet transport
- Retail logistics
- FMCG distribution
- Manufacturing
- Warehouse storage
- Consumer goods
- Food products
- Packaging materials
- Industrial products
- General freight
Standards & Certification
This container type complies with internationally recognised transport standards, including:
- ISO 668
- ISO 6346
- CSC Convention
- International intermodal transport requirements
These standards ensure worldwide compatibility with ports, depots, shipping lines and logistics operators.
Frequently Asked Questions
What does ISO code 2CG1 mean?
2CG1 identifies a 20-foot Pallet Wide General Purpose Container designed with increased internal width for more efficient pallet transport.
What is the advantage of a Pallet Wide Container?
The wider interior allows two Euro pallets to be loaded side by side, maximizing cargo space and reducing empty gaps.
How many pallets fit inside?
The container accommodates approximately 15 Euro pallets or 12 Industrial pallets, depending on the loading configuration.
What is the maximum payload?
The maximum payload is approximately 28,030 kg, depending on the manufacturer.
Is the container suitable for international shipping?
Yes. It is designed for international intermodal transport by sea, rail and road while offering improved pallet loading efficiency.
