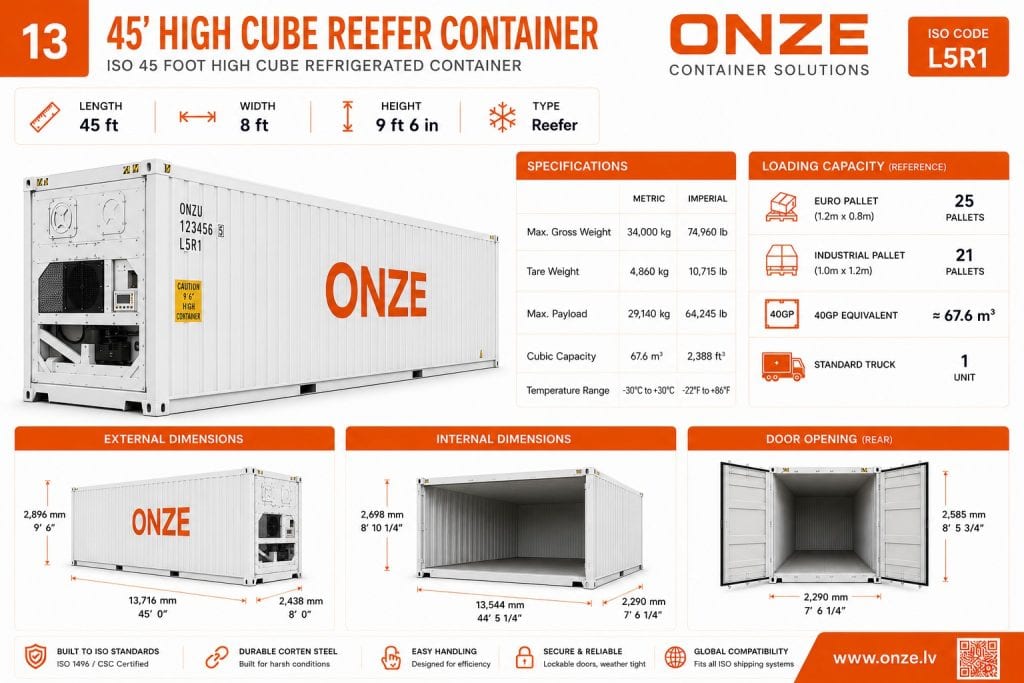

Standard ISO Refrigerated High Cube Container
The 45’ High Cube Reefer Container (ISO L5R1) is a mechanically refrigerated ISO container designed for transporting temperature-sensitive cargo under controlled conditions. Built in accordance with ISO and CSC requirements, it provides maximum internal loading volume while maintaining compatibility with international intermodal transport by sea, rail and road. The ISO code L5R1 designates a 45-foot High Cube Reefer Container.
The extended internal length and additional height make this container ideal for chilled, frozen and temperature-controlled cargo requiring both increased capacity and reliable refrigeration.
Technical Specifications
| Specification | Value |
|---|---|
| ISO Code | L5R1 |
| External Length | 13,716 mm |
| External Width | 2,438 mm |
| External Height | 2,896 mm |
| Internal Length | 13,556 mm |
| Internal Width | 2,294 mm |
| Internal Height | 2,544 mm |
| Door Opening Width | 2,290 mm |
| Door Opening Height | 2,520 mm |
| Maximum Gross Weight | 34,000 kg |
| Tare Weight | 5,800 kg |
| Maximum Payload | 28,200 kg |
| Cubic Capacity | 86.0 m³ |
External Dimensions
The external dimensions comply with ISO standards, allowing unrestricted use across international container transport systems.
- Length: 13,716 mm
- Width: 2,438 mm
- Height: 2,896 mm
The standardized footprint enables efficient handling by container cranes, reach stackers, trucks and railway wagons.
Internal Dimensions
The insulated cargo compartment has been designed to maximize usable loading volume while maintaining stable temperature conditions.
- Length: 13,556 mm
- Width: 2,294 mm
- Height: 2,544 mm
With a capacity of 86.0 m³, the container provides maximum loading volume for temperature-controlled cargo.
Door Opening
Full-width cargo doors allow safe and efficient loading using forklifts and warehouse equipment.
Door opening dimensions:
- Width: 2,290 mm
- Height: 2,520 mm
These dimensions provide convenient access while minimizing cold air loss during loading operations.
Payload & Weight Ratings
The insulated construction and refrigeration equipment increase the tare weight compared with a dry container.
- Maximum Gross Weight: 34,000 kg
- Tare Weight: 5,800 kg
- Maximum Payload: 28,200 kg
Actual payload depends on the refrigeration unit installed and manufacturer specifications.
Loading Capacity
Typical loading configuration includes:
- Temperature-controlled palletised cargo
- Frozen products
- Chilled food
- Pharmaceuticals
- Flowers
- Dairy products
- Meat and seafood
- Fruit and vegetables
Actual loading capacity depends on packaging, airflow requirements and cargo dimensions.
Refrigeration System
The integrated refrigeration unit maintains a stable cargo temperature throughout transport.
Typical applications include:
- Frozen cargo
- Chilled cargo
- Fresh produce
- Pharmaceutical products
- Temperature-sensitive chemicals
- Food products requiring controlled temperatures
Modern reefer containers typically operate within a temperature range of -30°C to +30°C, depending on the refrigeration unit installed.
Construction
The structure is manufactured from high-strength Corten steel with insulated walls, ceiling and floor to reduce heat transfer and improve cooling efficiency.
Standard construction features include:
- Integrated refrigeration unit
- Insulated panels
- Stainless steel interior
- Aluminium T-floor for airflow
- CSC certification
- ISO corner castings
- Weather-resistant door seals
Applications
The 45’ High Cube Reefer Container is commonly used for:
- Frozen food
- Fresh produce
- Meat
- Seafood
- Dairy products
- Pharmaceuticals
- Flowers
- Chocolate
- Temperature-sensitive chemicals
- Beverage logistics
Standards & Certification
This container type complies with internationally recognised transport standards, including:
- ISO 668
- ISO 6346
- CSC Convention
- International intermodal transport requirements
These standards ensure worldwide compatibility with ports, depots, shipping lines and logistics operators.
Frequently Asked Questions
What does ISO code L5R1 mean?
L5R1 identifies a 45-foot High Cube mechanically refrigerated ISO container.
What is the internal volume?
The internal cargo volume is approximately 86.0 cubic metres.
What is the maximum payload?
The maximum payload depends on the container manufacturer and refrigeration unit configuration.
What products are transported in a reefer container?
Typical cargo includes frozen food, chilled products, pharmaceuticals, flowers, dairy products, meat, seafood, fruit and vegetables.
Is the container suitable for international shipping?
Yes. It is designed specifically for international intermodal transport while maintaining a controlled temperature throughout the journey.
